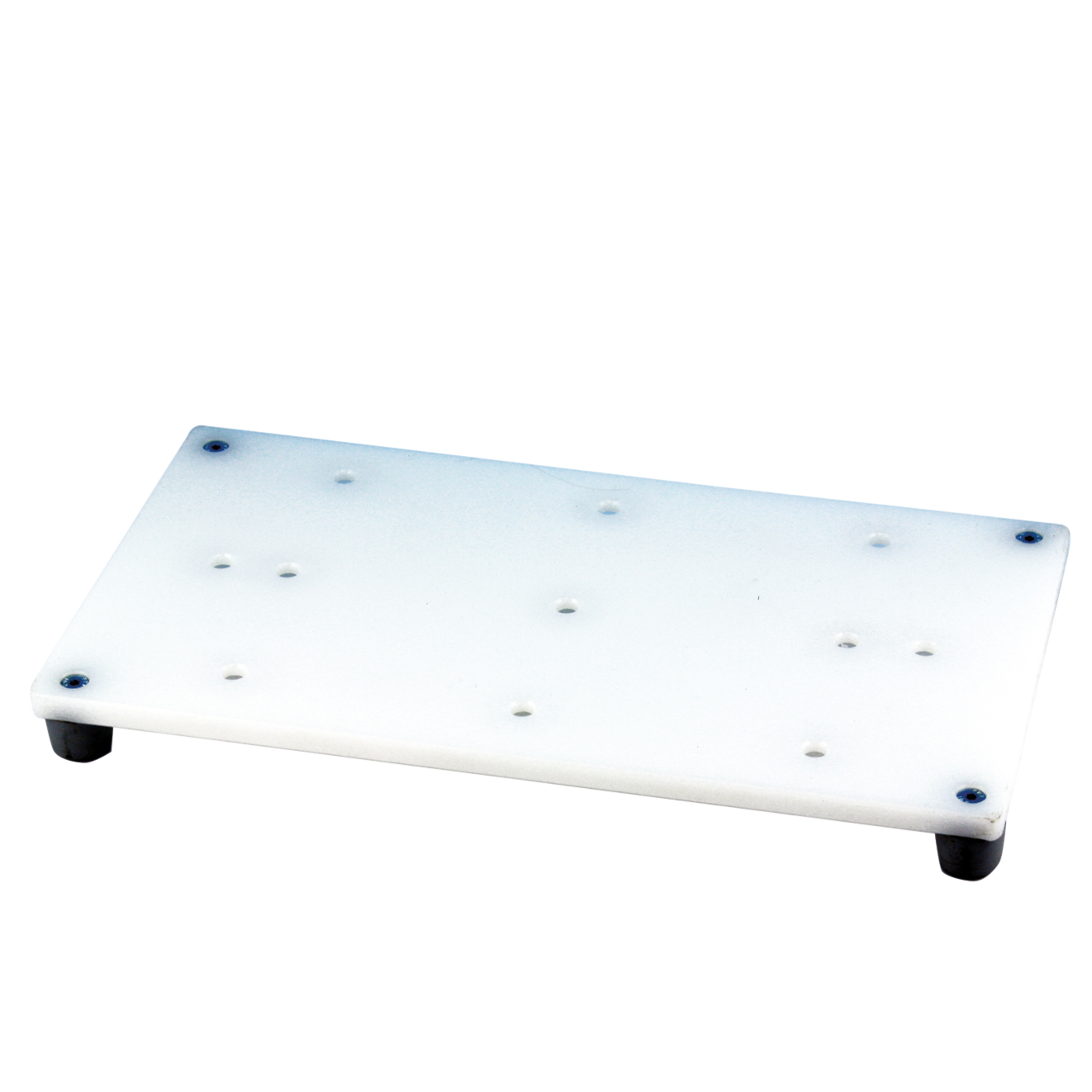

Base plate

Art no 48422

Strong base plate for laboratory experiments with, for example, resistance wire and alarm bell.

27.50 EUR

(34.38 EUR incl. vat)

pcs	Delivery - immediate

Product description

Strong base plate for laboratory experiments with, for example, resistance wire and alarm bell.

The base plate has eleven holes where Feet can be fitted. Then add, for example, a Column and resistance wire to examine resistance. The base plate is stable on four strong rubber feet.

Materials: Acetal plastic.
Dim.: 180x330 mm.

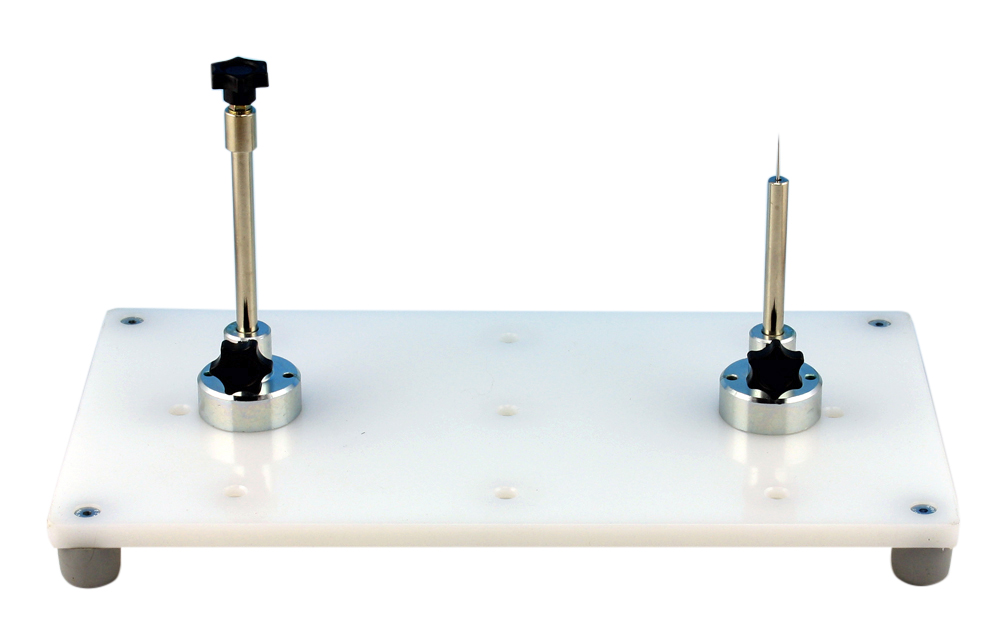

The picture in the middle shows the Base plate equipped with Feet, Column with screw and Column with point.
The lower picture shows a Base plate with an alarm bell fitted. Click on the picture to view the components included.
These parts are ordered separately, see below.

Iron core for Transformer, student

Art no: 48133
The iron core is fitted with a base made of plastic and a tensioning device for the I core.

49 EUR

Coil 200 windings, Transformer, student

Art no: 48134
This coil has safety inputs and is protected from inquisitive fingers thanks to insulation of all metal parts. The windings on the coil have a transparent plastic cover to protect them.

19 EUR

Foot for Base Plate

Art no: 48426
The Foot can be mounted on a base plate and is designed for 8 mm columns.

9.90 EUR

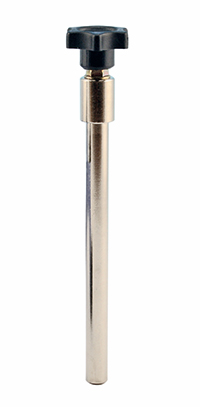

Column with screw

Art no: 48432
At the top of the Column, a wire is pinched in place using a butterfly screw. Can be mounted in the Foot to the Base Plate.

5.90 EUR

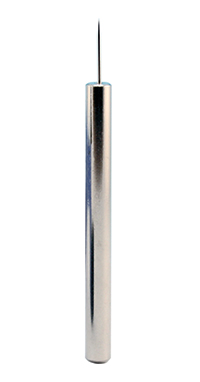

Column with point

Art no: 48436
At the point, for example, magnetic needles are placed for investigation of the magnetic field. Can be mounted in the Foot to the Base Plate.

4.50 EUR

Armature with spring

Art no: 48442
The armature is needed to build a classic alarm bell. It is mounted in a Column with screw.

13.50 EUR

Contact screw with holder

Art no: 48444
The contact screw is needed to build a classic alarm bell. It is mounted in a Column with screw.

9.90 EUR

Clapper with nut

Art no: 48446
The clapper represents the striking part of the bell when building a classic alarm bell.

3 EUR

Bell for alarm bell

Art no: 48448
The bell is needed when you plan to build a classic alarm bell.

12 EUR
